Allows the flow of WATER & DEBRIS while blocking GASES, ODORS & PESTS

GREEN DRAIN is the unique new standard for floor drain trap seals. Self-cleaning – water free – protecting against odor, gases and bugs!

Have A Question?

We’d love to hear from you.


Allows the flow of WATER & DEBRIS while blocking GASES, ODORS & PESTS

GREEN DRAIN is the unique new standard for floor drain trap seals. Self-cleaning – water free – protecting against odor, gases and bugs!

Have Any Question?

We’d love to hear from you.


Product Features

Easy to install & easy to remove. No pliers needed

Requires no caulk or expensive installation tool

Saves a significant amount of time, water, costs & energy

The 3½” fits in the barrel of most commercial cast iron drains for an easy retrofit into existing drains

design

greendrains is designed to help STOP the spread of COVID-19 & other pathogens through drains

Green Drain™ is a proactive cost-effective solution that fits into drains as a one-way trap seal. It protects against the spread of contagious pathogens like the COVID-19 and shuts out toxic gases, odors, insects, and prevents minor flooding. It’s the only Globally multi-patented product on the market, constructed with a revolutionary silicone skirt technology that installs in seconds. Paired with our non-toxic organic bio-enzymatic cleaning foam, it replaces costly toxic chemicals as well. Drain maintenance drops to almost nothing as Green Drain™ requires no water to function properly as opposed to water primers that dry out causing major issues such as exposure to drainage networks and drug-resistant biofilms.


LEARN MORE


Green Drain australia Logo-01

A product designed to solve problems of odor, pests and sewage buildup often seen in other commercial and industrial floor drains. Our product’s design is based off of our extremely effective and popular urinal cartridge technology, which has been tweaked to fit a much wider variety of applications. This simple, effective floor drain solution has already earned the regard of plumbers across the nation. Traditional floor drain technology poses a variety of problems in terms of maintenance and safety. The Green Drain™ solves these major problems in a big way.

Like to read more?

Click to learn more

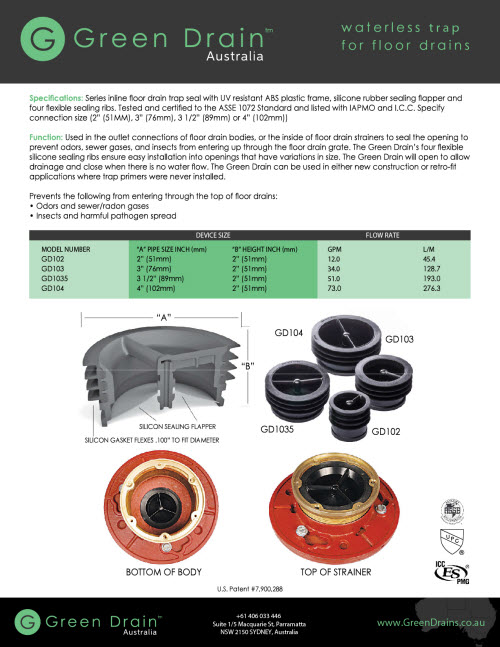

Specifications

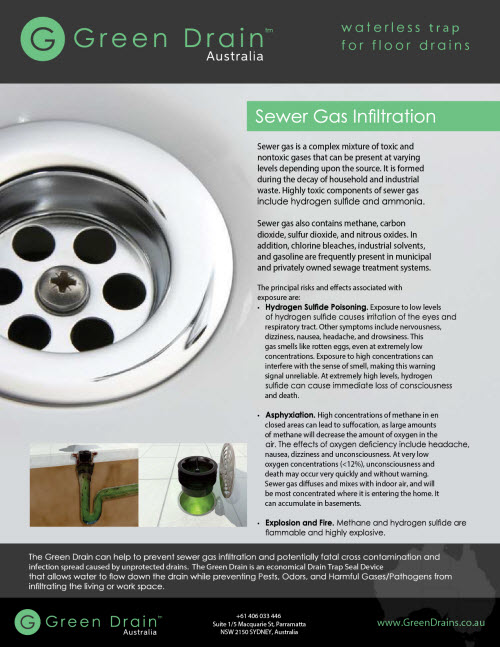

Sewer Gas Infiltration

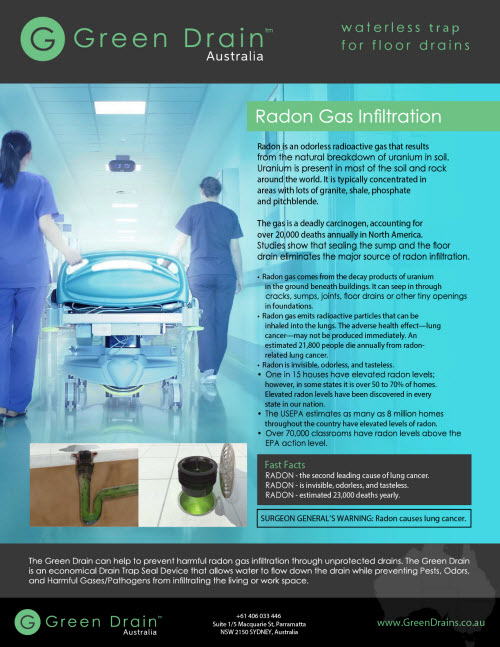

Radon Gas Infiltration

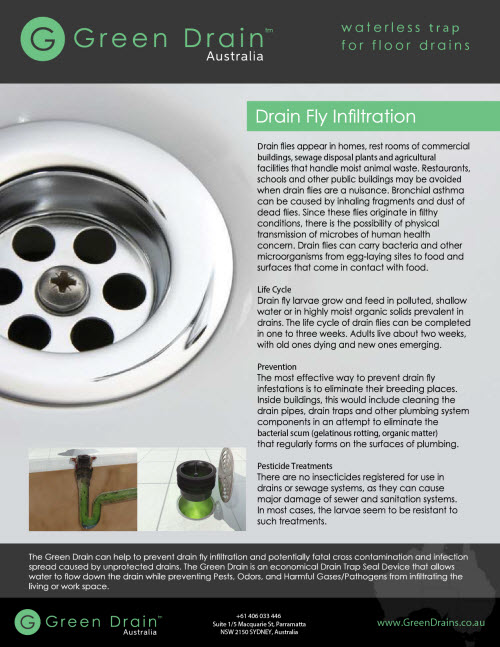

Drain Fly Infiltration

Drain Protection

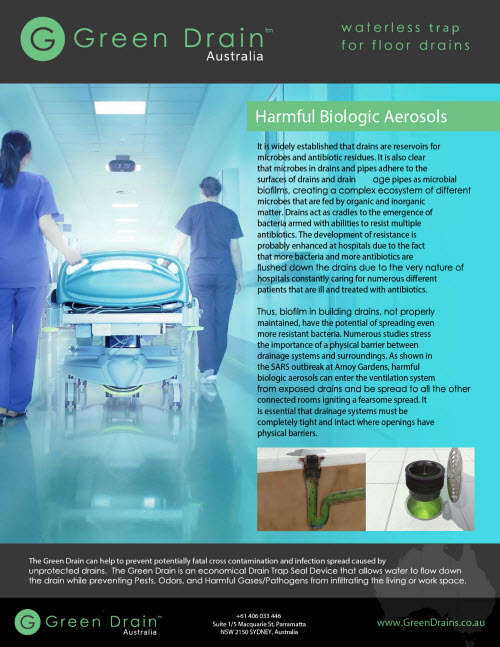

Harmful Biologic Aerosolos

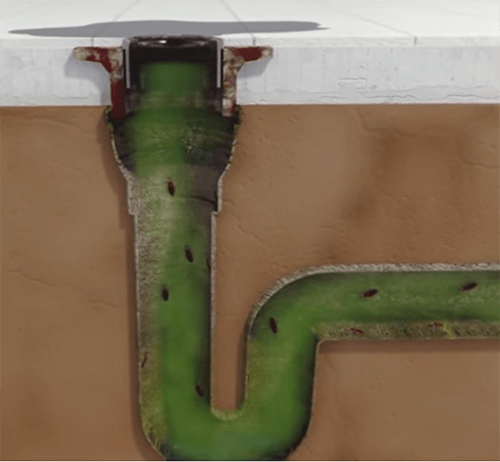

The Problem

Plumbing systems, along with open and exposed drains are potential sources for contamination that provide a hospitable habitat for waterborne pathogens, especially for Legionella.

The Solution:

The Green Drain™ reduces exposure to hazardous sewer gases and disease causing pathogens that harbor within drain lines and plumbing systems. It is the ecofriendly, preventative solution that will lead to improved outcomes for worker & patient health, while exceeding the lifespan of traditional chemical applicants that harm the environment.

DRASTICALLY MINIMIZES THE RISK OF MULTIPLE, DEADLY HAI’S.

Eliminates:

• The threat of disease carrying pests that hide in your drains. (I.e. Drain Flies, Cockroach’s, Fruit Flies, Silver Fish)
• The need to pour pesticides, chemical applicants and deodorizers down the drain.

Conserves:

• Water and water related expenses by eliminating the need for trap primers.
• Time and energy.

Reduces:

• The risk of harmful sewer gasses intruding your facility through drain lines.
• Costly chemical expenditures.
• Plumbing related call‐outs.
• Exterminator related call‐outs and call‐backs.
• Timely drain maintenance by Facility Staff and Plumbers.
• Sewer load.
• The chemical impact on our oceans and environment.

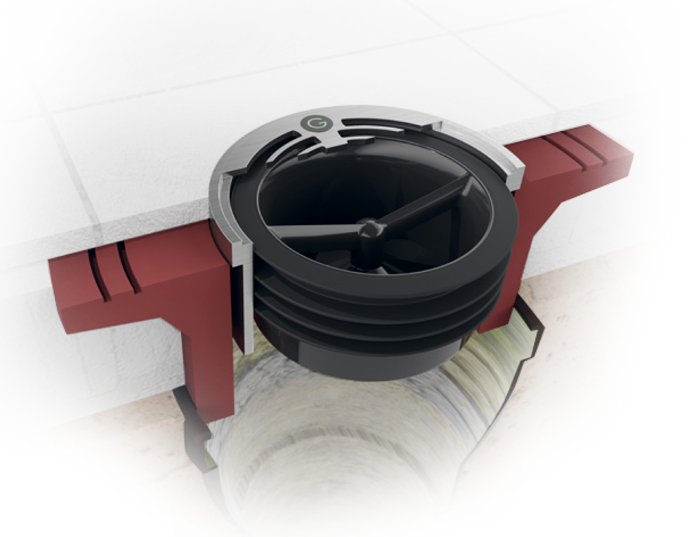

How it works

The Green Drains’ dual patent design allows for the flow of water and debris, while blocking gases, odors and pests.

View our demo video for more information.


CONTACT US NOW

Installation Instructions

1

Remove the grate or strainer.

Match the opening size (2”, 3”, 3.5”, or 4”) with the product size.

2


3

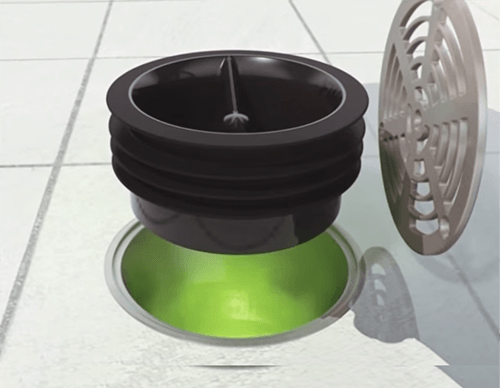

Place the appropriate size Green Drain into the floor drain body outlet connection, or the throat of the strainer.

The four flexible silicone sealing ribs ensure easy installation into openings that have variations in size.

Recess The Green Drain into the pipe for maximum flow of liquids, and Replace the grate.

4

The Green Drain™ should be flushed with water periodically to clear debris. Otherwise, the Green Drain™ is maintenance free.

design

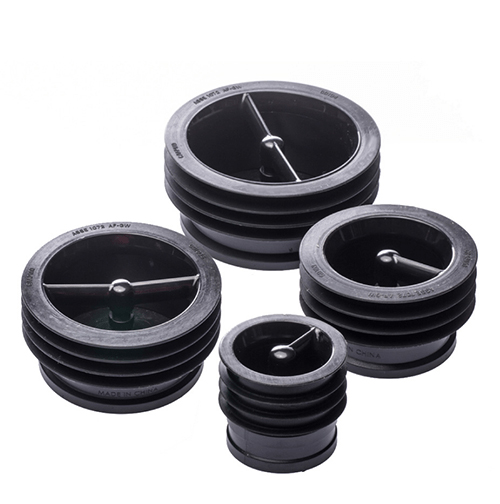

Our Product Variations

GD2

2″ (50-58 mm)

Pipe Size

51mm

Height

45.4

L/M


VIEW Product

GD3

3″ (75-85 mm)

Pipe Size

51mm

Height

128.7

L/M


VIEW Product

GD3.5

3.5″ (89-100 mm)

Pipe Size

51mm

Height

193.0

L/M


VIEW Product

GD4

4″ (102-110 mm)

Pipe Size

51mm

Height

276.3

L/M


VIEW Product

View our list of distributors


VIEW LIST


APPLY NOW

design

Frequently asked questions

What is the Green Drain TM?

The GREEN DRAIN™ is an environmentally friendly water free trap seal, which can be installed in basically all floor drains without the use of tools.

Why is GREEN DRAINTM self-cleaning?

GREEN DRAIN™ lets water rinse the membrane and has no “labyrinth” opposite to normal trap seals that collects dirt, hair and grease.

Where can I install GREEN DRAINTM ?

GREEN DRAIN™ can be installed in almost all types of floor drains. In new buildings as well as older buildings. Private houses as well as industrial use with only small limitation. Examples of common places:

  • Factories
  • Schools
  • Office Buildings
  • Hospitals
  • Restaurants
  • Hotels
  • Public Buildings
  • etc

Which sizes do GREEN DRAINTM come in?

GREEN DRAIN™ come in 5 different sizes which each are flexible and cover different measures as shown below. GREEN DRAIN™ fits in almost all floor drains with diameters according to following intervals:

Model Size
GD2 50-58 mm
GD3 75-85 mm
GD35 89-100 mm
GD4 102-110 mm
GD5 120-135 mm

Is GREEN DRAINTM approved and tested by accredited institutions?

GREEN DRAIN™ has been approved or tested by following institutions – among others:

•Technological Institute – DS/EN 1253-1
• ETA Denmark – VA approval
• UPC/IAPMO
• ICC IPC – via ASSE Standard 1072

Is GREEN DRAINTM easy to install?

GREEN DRAIN™ can be installed without the use of tools after the grating has been removed. Just push the GREEN DRAIN™ into the pipe and make sure it fits.

How does GREEN DRAINTM work?

GREEN DRAIN™ has a flexible silicone membrane which lets the water run freely through and instantly hereafter closes and seals as soon as water stops flowing.

Why choose GREEN DRAINTM ?

GREEN DRAIN™ seals 100% and closes for odours and prevents pests and harmful gases from entering the building.

Does GREEN DRAINTM replace a traditional water trap seal?

GREEN DRAIN™ replaces a traditional trap seal contributing numerous advantages:

• Improves indoor air quality due to no sewer smell and gases
• Prevents waste water penetration
• Office buildings
• Self-cleaning and does not block the water flow
• No dry water seals and resists vacuum in the drainage system

Can GREEN DRAINTM be installed horizontally and vertically?

GREEN DRAIN™ contains no water and functions perfectly both horizontally and vertically.

Which materials used to produce GREEN DRAINTM?
GREEN DRAIN™ water-free membrane drain trap seal consists of a UV resistant ABS plastic frame, a silicone rubber sealant and four flexible sealing flanges for easy installation and perfect fit.
Can I install a GREEN DRAINTM if I have P-trap in the ground?

GREEN DRAIN™ is NOT a traditional water trap and the fact that it does not contain water it is still possible to install in combination with a P-trap.
